Double column type Milling Machines
Double-Column, 5-Face Milling Machine MVR-Hx series
Company：NIDEC MACHINE TOOL CORPORATION
Do more with Five-face Milling. Added freedom for machining.
MVR30Hx
Award recognition
2022 Nikkan Kogyo Shimbun 52nd Machine Industry Design Award IDEA Award Japan Machine Tool Builders' Association Award
For large workpieces
Choose from MVR25Hx to MVR45Hx, with distance between columns from 2,050 mm to 4,250 mm.
5-face machining flexibility
Support for vertical and horizontal machining with a wide range of attachments and package options.
Accuracy support
Spindle core cooling and thermo-stabilizer column help suppress thermal displacement during machining.
Heavy cutting capability
Supports high-power cutting applications including milling, boring and tapping operations.
MVR25Hx
Distance between columns (mm)
2,050
Distance from table top to spindle nose (mm)
std. 1,650
opt. 2,010
MVR30Hx
Distance between columns (mm)
2,550
Distance from table top to spindle nose (mm)
std. 1,650
opt. 2,010
MVR35Hx
Distance between columns (mm)
3,250
Distance from table top to spindle nose (mm)
std. 1,850
opt. 2,150
MVR40Hx
Distance between columns (mm)
3,750
Distance from table top to spindle nose (mm)
std. 1,850
opt. 2,150
MVR45Hx
Distance between columns (mm)
4,250
Distance from table top to spindle nose (mm)
std. 2,150
Features
Outstanding accuracy

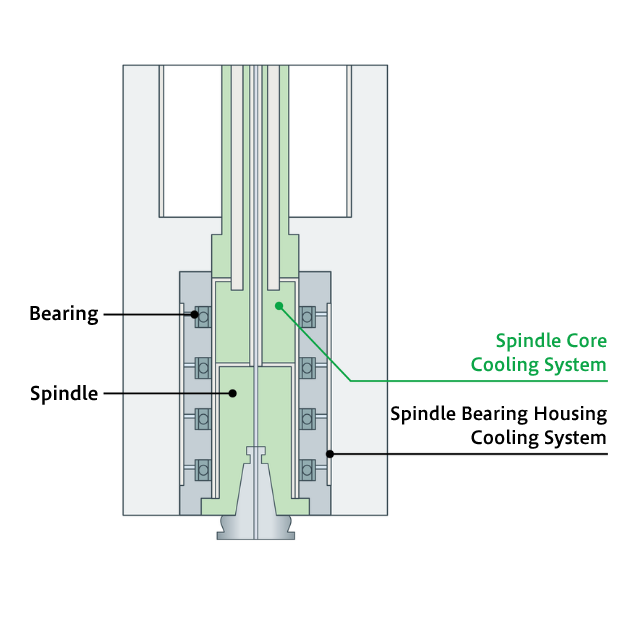

The spindle core cooling that suppresses thermal displacement
- It reduces steps and bites on the machined surface.
- High-precision machining is possible at the speed range from low to high.
Vertical Spindle Structure
The sample surface is divided into areas and processed with 5 tools.
Rotation speed to 4,000 to 8,000 min-1 for each tool, the step at the area boundary is 3.5 μm at the maximum.
Thermo-stabilizer column maintains geometric accuracy without being affected by changes in environmental temperature
- Setup is possible without worrying about temperature changes over time
- The origin does not go out of order even during long-time machining, reducing the frequency of centering.
Prominent cutting ability
Powerful heavy cutting on both vertical and horizontal axes
φ160mm milling cutter
(Vertical spindle)
Standard spindle 8,000min-1 specification
φ160mm milling cutter
(Right angle head)
Standard spindle 8,000min-1 specification
φ563 large diameter boring
(Vertical spindle)
Torque up spindle (Opt.)
4,000min-1
M64 tap
M64 tap
Standard spindle 8,000min-1
Versatile performance
Many kinds of attachments and package options available
You can select the attachment according to the shape of part of workpieces such as narrow part, inclined surface, free curved surface, or to the machining method like high-speed machining, high-precision machining etc.
Example of attachment according to part shapes
| Right angle head | Powerful Right angle head High Right angle head Small Right angle head |
|---|---|
| Extension head | Extension head (long) Extension head (short) Extension head (small diameter) High speed Extension head High speed Extension head (built-in motor) |
| Universal head | Universal head (offset type) Universal head (center head) High speed universal head |
| 5-axis machining head | 5-axis (NC2-axis) attachment |
"Operability" that expands the possibilities
- 15 inch large screen, touch screen operation panel
- Equipped with the latest NC FANUC 31i-MODEL B Plus
- "Tool magazine operation panel" with touch panel allows you to call pot numbers and edit tool data
Tool magazine operation panel" is placed near the magazine
Specifications
| Item / Model | MVR25Hx | MVR30Hx | MVR35Hx | MVR40Hx | MVR45Hx | ||
|---|---|---|---|---|---|---|---|
| Table | Working area | Width（mm） | 1,500 | 2,000 | 2,500 | 3,000 | 3,500 |
| Length（mm） | 3,000 (opt. 4,000, 5,000, 6,000, 8,000) | 3,000 (opt. 4,000, 5,000, 6,000, 8,000, 10,000) | 4,000 (opt. 5,000, 6,000, 8,000, 10,000) | 6,000 (opt. 8,000, 10,000) | |||
| Loading Capacity (ton/Working area m) | 12/3.0 | 20/3.0 | 25/4.0 | 35/6.0 | |||
| (opt. 15/4.0, 18/5.0, 20/6.0, 20/8.0) | (opt. 25/4.0, 30/5.0 to 10.0) | (opt. 30/5.0 to 10.0) | (opt. 30/8.0, 25/10.0) | ||||
| Throat clearance between columns（mm） | 2,050 | 2,550 | 3,250 | 3,750 | 4,250 | ||
| Distance from the end to table surface（mm） | 1,650 (opt. 2,010) | 1,850 (opt. 2,150) | 2,150 | ||||
| Spindle | Ram size（mm） | □350 | |||||
| Spindle speed（min-1） | 20～8,000 （opt. 17～6,000, 11～4,000, 40～12,000） | ||||||
| Spindle motor output（kW） | Cont. 22/30：Low/High （opt. 18.5/26：Low/High， 22/30：Cont./30min，22/30：Cont./30min） | ||||||
| Number of tools | 60 （opt. 80, 100, 120, 180） | ||||||
| Machine weight（kg/Working area mm） | 35,090/3,000 | 38,590/3,000 | 58,540/4,000 | 66,540/4,000 | 103,940/6,000 | ||
